"Ebi"
Ceramic Cat and Dog Drinking Fountains
The Quality
& Aesthetics You Want, The Safety and Health-Promoting Features Your
Pet Deserves
Handcrafted
in the USA
Replacement parts and accessories for EBI fountains
Pumps,
Power supply, Filters and more
Please note: If you are ordering a fountain, the base price includes a
low-voltage pump, a power adapter and your choice of Drinkwell 360 filter
housing with one cartridge or Ebi's refillable Bio Filter with one bag and
carbon fill.
60 to 166 l/h low voltage DC pump, Model AD106B
 |
Replacement
for pump model AC102 and JT180
60 to 166 l/h
low voltage DC pump
This pump is a brushless submersible DC pump rated IPX8.
This model has a variable flow control valve
and an inlet foam filter.
The pump does not come with a power supply.
The higher the voltage of the power transformer used with this
pump, the greater the water throughput.
|
- Starting Voltage : 4.5 VDC, 85 mA
- Max. flow capacity: 165 L/H at 5 volt
- Max. pumping head: 60 cm
- Efficiency: 98%
- Variable flow control and foam filter
- 8 mm outflow
- Cord length: 2 m
- 5.5mm x 2.1mm jack
- Life time : more than 25000 hours
- Low noise: 30dB, whisper quiet.
|
80 to 150 l/h low voltage DC pump, Model AD102 (out of stock)
 |
80 to 150 l/h
low voltage DC pump
This pump is a brushless submersible DC pump.
This model has a variable flow control valve.
The pump does not come with a power supply.
The higher the voltage of the power transformer used with this
pump, the greater the water throughput.
|
- Pump : 4-9 VDC, 0.4 W to 2 W
- Max. flow capacity: 130 L/H at 6 volt
- Max. pumping head: 55 cm
- Efficiency: 98%
- Variable flow control
- 9 mm outflow
- Cord length: 2 m
- 5.5mm x 2.1mm jack
- Life time : more than 20000 hours
- Low noise: 30dB at 9 volt (full speed), whisper quiet at low
speed.
|
| Model AD102 DC pump
without on/off switch |
our price: $17.00 |
|
| Model AD102 DC pump
with rocker on/off switch |
our price: $21.00 |
|
| Model AD102 DC with
rotating on/off switch |
our price: $21.00 |
|
45 to 90 GPH (300 l/h) low voltage DC pump, Model JT-180IL
|
45 to 90 GPH
low voltage DC pump (only for use in our UV/Bio filter combo)
This pump is a brushless submersible DC pump.
The higher the voltage the power transformer is set to, the
greater the water throughput.
|
- Pump : 4-12 VDC, 0.6 W-4 W
- Max. flow capacity: 330 L/H at 12 volt
- Max. pumping head: 55 cm
- Dimensions: 1 1/2" L x 1 1/2" W x 1 1/2" H
- Efficiency: 98%
- 5/16 inch outflow
- 2 suction cup feet
- Cord length: 5’ with on/off switch
- 5.5mm x 2.1mm jack
- Life time : more than 20000 hours
- Low noise: 30dB, at 12 volt (full speed), quiet at low
speed.
|
The USB adapter cable:
|
The USB
adapter cable connects your fountain pump to any USB power supply
(eg. USB charger, computer, USB battery packs, portable USB
Battery Charger (usually used to recharge your cell phone when you
are off grid).
You can use one of these power packs (25,000 mAh will provide 5
days of uninterrupted run time) or stack them (so use 2 or 3
parallel) to double or triple the run time.
|
The adapter cable for 2 batteries:
 |
The adapter
cable connects your fountain pump to two identical power supplys.
You can use this adapter to connect your pump to two identical
batteries (D-cell holders or USB power packs) to double the run
time.
|
The 90-degree USB adapter:
 |
In tight
spaces, like a battery compartment, a straight connector may be
too large to connect a USB battery to your fountain pump.
This 90-deg adapter helps connecting your pump to the USB
battery.
|
USB to 5.5x2.1mm DC power adapter:
|
|
- USB 2.0 A type male to 5.5x2.1mm DC power plug
- Provides 5V DC from USB power devices from a USB port
- To connect our pump to a USB power source
- Connector dimesions: 45mm x15mm x 6mm
|
AC 100-240V to DC 4.5 volt Wall Power Transformer
|
High quality wall power transformer adapts AC to DC.
These are switch mode power supplies with a regulated output and
a center-positive 5.5x2.1mm barrel connector.
We offer these power adapters for EU or GB AC outlets as well.
|
Output: 4.5VDC, 5VDC or 6VDC
Amps: >=500mA
Input: 100-240VAC
Tip size: 5.5mm x 2.1mm
5' cord length
|
Universal Voltage Output AC/DC Power Adapter
|
500mA adapter for multiple DC voltage outputs and right-angle
5.5mm x 2.1mm DC plug
|
Output: 3V, 4.5V, 6V, 7.5V, 9V, 12VDC
Amps: >=500mA
Tip size: 5.5mm x 2.1mm
Reversible tip polarity (set up to center +)
6' cord length
|
AA battery pack for low voltage DC pump
|
Battery
pack for 4 AA-cells
Our low voltage DC-pumps can be driven by batteries or a DC power
converter.
This battery box holds 4 AA type batteries (not included).
|
- Battery box for 4 x AA type batteries
- 6 volt
- with ON/OFF switch
- Dimensions: 2 3/4" L x 2 1/2" W x 3/4" H
|
Holder for 3 or 4 D-cell
batteries
|
Open
battery holder for 3 or 4 D-cells with plug
Our low voltage DC-pumps can be driven by batteries or an AC/DC
power converter.
We offer 2 different battery holders, one for 3 and one for 4
D-type batteries (batteries not included).
|
- Battery holder for 3 or 4 D-type batteries
- 4.5 or 6 volt
- without switch
- Dimensions: 5-1/4" L x 2-3/4" W x 1-1/8" H
|
D-cell battery box for low
voltage DC pump
|
Battery
box for 3 to 4 D-cells
Our low voltage DC-pumps can be driven by batteries or an AC/DC
power converter.
This battery box holds 3 or 4 D-type batteries (not included).
|
- Battery box for 4 D-type batteries
- 6 volt
- with or without ON/OFF switch
- Dimensions: 6" L x 3" W x 2 1/8" H
|
This is how long the pump runs with different battery options:
| Battery-Type |
number |
Type |
run time |
rechargeable? |
| AA-Cell |
4 |
NiMH/NiCd |
5 hours |
yes |
| AA-Cell |
4 |
alkaline |
30 hours |
no |
| D-Cell |
4 |
NiMH/NiCd |
30 hours |
yes |
| D-Cell |
4 |
alkaline |
140 hours |
no |
| Rayovac S-plug |
6 Volt, 12 Ah |
Rayovac SLA |
100 to 120 hours |
yes |
| Li-Ion USB |
5 Volt |
Li-Ion |
15.000 mAh=3 days
50.000 mAh=5 days |
yes |
32 oz glass bottles for
pumpless waterer
|
This 32 oz clear glass utility round bottle has a 28-405
continuous thread neck finish, and is fluted. Traditionally, this
style of bottle has been used to package vinegar.
|
- 3.5 inches diameter
- 9.2 inches high
|
Vortex according to Victor
Schauberger
|
The vortex is made of CDA #110 copper; 99.9% pure. It's designed
to be inserted into the vinyl tube that connects the filter
housing to the spout. For more info see "living water"
|
- for 3/8" clear vinyl tubing
- vortex with 3 twists
|
Our filter systems
Refillable Glass-Jar Filter with
PP lid
|
The filter housing is made of a glass mason jar used for food
storage with a BPA free PP lid.
A aquarium filter foam piece inside holds the aquarium grade
filter carbon in place. Carbon and tubing is not included. |
- uses "aquarium grade filter carbon", preferred carbon
pellets.
- for 3/8" OD (pump and spout) clear beverage grade vinyl
tubing or
- 3/8" (pump) and 7/16" OD
(spout) clear beverage grade vinyl tubing
- Dimensions: 3.5" L x 2" W (8.5cm x 5cm)
- holds a 1/4 cup of charcoal
|
How to assemble this system: https://youtu.be/ZUc_DEJJ4gk
See a video showing the Glass-filter system: https://youtu.be/NYQMdUCl8sM
Filter housing for Drinkwell
360 replacement filter
|
The filter housing is made of the PVC pipe used for drinking water
systems. The filter housing is designed for Drinkwell 360
Replacement Filters. Filter cartridge not included.
|
- uses Drinkwell 360 replacement filters
- for 3/8" x 1/4" clear vinyl tubing
- Dimensions: 5 1/2" L x 2 1/2" W x 2 1/2" H
|
Filter housing for "Ebi's
Bio Filter" type 2
|
The filter housing is made of the PVC pipe used for drinking water
systems. A media bag inside holds the aquarium grade filter
carbon. Media bag and carbon not included.
|
- uses "aquarium grade filter carbon"
- for 3/8" x 1/4" clear vinyl tubing
- Dimensions: 4" L x 2-3/4" W (10cm x 7cm)
|
Media bag for
"Ebi's Bio Filter" or our UV/Bio combo filter
|
Specially designed drawstring bag for maximized filtration. It
will not disintegrate in water.
For use in "Ebi's Bio Filter" type 2 with all types of carbons or
other granular products.
How to Use: Fill bag with desired media, place the bag in the
filter fold it and close the housing.
Carbon not included.
|
- uses "aquarium grade filter carbon"
- Dimensions: 3" x 8"
- Washable and reusable
- 100% nylon
|

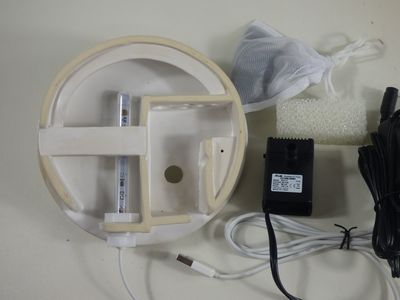

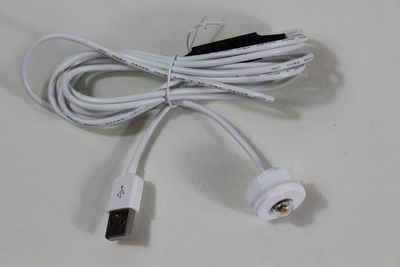

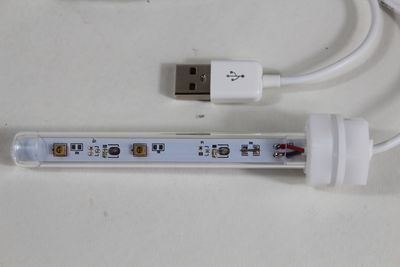

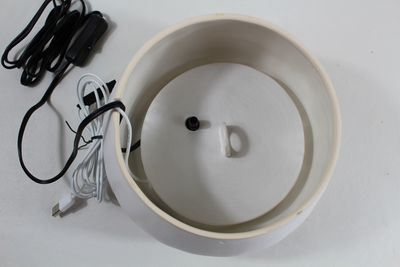

Low voltage UVC sterilization
lamp
|
Specially designed for use in our fountains.
If the UVC lamp is used directly in the fountain bowl a special sieve cover is required to
protect pets' eyes.
|
- with 12 volt DC wall power transformer
- Dimensions: 6" long
- 1.7 watt at 285 nm
- 6 ft. cable (5 ft. on UV lamp, 15 in. on power transformer)
- with on/off switch
- with suction cup for optional use in the fountain bowl
- lifetime is up to 1 year when used properly
|
Foam filter for your pump
|
The
easy-to-install pre-filter fits easily around the pump inside the
water reservoir.
|
Prevents hair, debris and other large particulates from entering
the pump.
Helps maintain optimum flow rate, enhance carbon filtration and
further prolong the life of your pump.
Pre-filter can be easily washed out and re-used to extend its
useful life.
|
Sieves
|
We offer sieves made of 2 different stainless steel grades: SS202
and SS304.
All the sieves you can buy on the market are made of SS202.
The SS304 sieves are specially made for us.
Another name for SS304 is 18-8, A2 or Cromargan®, used for higher
price flatware. |
202 stainless has
recently become very popular and its low cost has made it more and
more commonly used for restaurant equipment, cooking utensils,
sinks and appliances.
There are over 150 types of stainless steel out there, and there
are 15 types that are commonly used.
304 stainless steel is one of the most desired and widely used
grades of stainless on the market. Extreme durability and beauty
have made this 304 the hottest grade on the market; it's used for
high-end appliances, pots, pans, and flatware. |
Ceramic Sieves
|
These sieves are made of the same type of
ceramic as the fountains. They can be glazed in your fountain's
color.
|
|
Sieve covers
|
Ceramic sieve covers made in your fountain's color.
|
|
Replacement tubing
 |
The beverage grade formulation we use:
Samar ™ versatile Clear Vinyl Tubing can be
used for beverage dispensing, potable water, laboratory tubing,
and numerous low pressure applications.
It is light weight, yet tough and abrasion resistant.
The CVT™ PVC compound is in compliance with FDA CFR TITLE 21
requirements, and meets USDA, 3A, and NSF51 criteria.
|
All newer f ountains use 3/8" OD tubing from pump to filter and from the filter
housing to the spout.
 |
The antimicrobial formulation we use:
- CLEARFLO AG-47 PVC 1/4IDX3/8OD
- Clear Antimicrobial Non-Phthalate PVC Tubing
- Made from non-toxic ingredients conforming to FDA
standards
- No phthalates, latex or animal-derived ingredients
- Listed by the National Sanitation Foundation (NSF-51) for
food equipment materials
- Antimicrobial ingredient is throughout the tubing, not
only on the interior as with other products
- Transparent for visual flow contact
- Contains antimicrobial technology to guard against
bacteria such as E. coli, listeria, salmonella, legionella,
MRSA, campylobacter and pseudomonas
- Well suited for food and beverage applications including
non-fatty aqueous, milk and alcoholic beverages (below 20%
ABV)
- REACH and RoHS compliant
|
Tube Brushes
 |
Great for cleaning tubes and narrow-mouth ceramics. Fan tip
facilitates cleaning and protects ceramic/glassware with white or
black nylon bristles. |
|
| Item Number: |
710186 - for flowers & animal spouts |
| Item Name: |
Tube Brushes - Fan Tip, White Nylon
Brush Diameter Inches: 11/32"
Brush Length Inches: 2"
Overall Length Inches: 8" |
| Price: |
$8.00 |
|
| Item Number: |
715250 - for 3/8" tubing |
| Item Name: |
12" Brush Length, Black Nylon
Brush Diameter Inches: 1/4"
Brush Length Inches: 3"
Overall Length Inches: 12" |
| Price: |
$8.00 |
|
| Item Number: |
710776- for faucets, flowers |
| Item Name: |
Tube Brushes - Fan Tip, White Nylon
Brush Diameter Inches: 3/4"
Brush Length Inches: 3 1/4"
Overall Length Inches: 12" |
| Price: |
$8.00 |
|
Replacement Lids & Bowls
 |
The replacement lids and bowls are custom made for your fountain.
You need to add the cost for the spout or decor. |
- one sieve included
- one sieve cover included
- add spout
- add decor
- add $30 if lid for a battery fountain
- add $40 if bowl for a battery fountain
|
